Kleihauer-Betke Test: Understanding the kleihauer betke test for Detecting Fetal Maternal Hemorrhage in Obstetrics

Pregnancy depends on a delicate physiological relationship between the developing fetus and the mother, maintained largely through the placenta. The placenta acts as a selective interface that allows the exchange of oxygen, nutrients, and metabolic waste while generally preventing the direct mixing of fetal and maternal blood. Despite this protective function, small amounts of fetal blood cells may occasionally pass into the maternal circulation, a process known as feto-maternal hemorrhage. In most pregnancies, these transfers are minimal and clinically insignificant. However, larger volumes of fetal blood entering maternal blood can lead to important obstetric complications, making accurate detection and quantification essential in clinical care.

The Kleihauer-Betke Test is a laboratory blood test used to identify and measure the presence of fetal red blood cells circulating within the maternal bloodstream. Often referred to as the kleihauer-betke test or kb test, this diagnostic method takes advantage of a key biological difference between fetal and adult erythrocytes. Fetal hemoglobin—the dominant hemoglobin present in fetal erythrocytes—is more resistant to certain chemical processes than the hemoglobin found in adult red blood cells. By applying a specialized stain technique based on acid elution, laboratory professionals can distinguish fetal cells from maternal cells on a microscopic blood smear, allowing clinicians to estimate the percentage of fetal cells present.

The presence of fetal erythrocytes in maternal circulation is most commonly associated with fetal-maternal hemorrhage, also known as fetomaternal hemorrhage (FMH). This condition occurs when blood from the fetus crosses the placental barrier and enters the maternal vascular system. Small degrees of fetal bleed may occur during normal pregnancy, particularly during labor and delivery. However, larger hemorrhages can arise from complications such as placental abruption, invasive obstetric procedures, or cases of maternal trauma including motor vehicle accidents and abdominal injuries during pregnancy. In these situations, identifying cells in the maternal circulation that originate from the fetus can help clinicians predict fetal risk and guide appropriate medical interventions.

The clinical significance of detecting fetal hemorrhage extends beyond immediate obstetric assessment. One of the most important applications of the Kleihauer-Betke Test involves the management of pregnancies where the mother is rh negative and the fetus may be rh positive. When fetal blood cells enter the maternal bloodstream, the maternal immune system may recognize the Rh antigen as foreign and produce an antibody against it. This immune response can result in hemolytic disease, also known as disease of the fetus, which can cause severe complications such as fetal demise, neonatal anemia, or long-term morbidity in affected newborns. The Kleihauer-Betke Test helps determine the number of fetal cells and estimate the approximate ml of fetal blood transferred to the mother, information that is essential for calculating the appropriate dose of rh immune globulin or anti-D therapy.

Historically, the development of the Kleihauer-Betke Test is attributed to the work of the German researcher Enno Kleihauer, whose investigations demonstrated the unique resistance of fetal hemoglobin to acid exposure. This discovery led to the development of the acid elution test, sometimes called the kleihauer test or betke k technique. During the process, adult erythrocytes lose their hemoglobin when exposed to an acidic solution, whereas cells containing fetal hemoglobin remain intact and retain the stain. Under microscopic examination, these fetal blood cells appear as brightly stained cells against a background of pale maternal cells, enabling quantification in the clinical laboratory.

Although modern diagnostic technologies such as flow cytometry can provide highly sensitive detection of HbF (hbf) within maternal circulation, the Kleihauer-Betke Test remains widely used in many healthcare settings. Its continued relevance stems from several advantages: it is relatively inexpensive, requires minimal specialized equipment, and can be performed in most hospital laboratories. As a result, the Kleihauer-Betke Test remains a practical method for evaluating suspected fetal hemorrhage, particularly in urgent clinical situations where rapid assessment is necessary.

The importance of the Kleihauer-Betke Test also extends to guiding treatment decisions in obstetric care. The amount of fetal blood detected through the test may influence whether interventions such as transfusion, additional fetal monitoring, or targeted immunologic therapy are required. In pregnancies complicated by significant fetomaternal hemorrhage, early recognition and appropriate management can help prevent complications such as anemia kleihauer betke test findings in newborns, preterm labor, or adverse fetal outcomes. Research reported in sources such as the Journal of Obstetrics has emphasized that timely identification of large fetal hemorrhages can significantly improve perinatal management and outcomes.

Understanding the Kleihauer-Betke Test therefore requires not only knowledge of laboratory methodology but also an appreciation of the physiological processes that allow blood cells in the maternal system to originate from the fetus. The test represents a bridge between laboratory science and clinical obstetrics, providing measurable evidence of blood exchange across the placenta. Through careful analysis of kb results, healthcare professionals can better assess the severity of fetal hemorrhage, anticipate complications affecting the mother and fetus, and implement appropriate therapeutic strategies.

The sections that follow explore the Kleihauer-Betke Test in greater depth, examining the underlying laboratory principles, clinical indications, procedural steps, interpretation of results, and modern alternatives such as flow cytometry. Together, these topics provide a comprehensive understanding of how this diagnostic method contributes to the evaluation and management of feto-maternal hemorrhage in contemporary obstetric practice.

Introduction to Fetal–Maternal Hemorrhage and the Role of the Kleihauer-Betke Test

Overview of fetal blood transfer into maternal circulation

During pregnancy, the circulatory systems of the mother and fetus remain largely separate despite being closely connected through the placenta. This separation is maintained by the placental barrier, a specialized structure composed of trophoblastic cells and fetal capillaries that regulates the exchange of oxygen, nutrients, and metabolic waste. Under normal circumstances, the barrier prevents significant mixing of fetal and maternal blood. However, disruptions in placental integrity may allow fetal blood cells to pass into the maternal circulation, a condition known as feto-maternal hemorrhage or fetomaternal hemorrhage (FMH).

Small amounts of fetal blood can enter maternal blood even during uncomplicated pregnancies. These minimal transfers are typically harmless and may occur during normal physiological processes such as uterine contractions in late pregnancy or minor placental microtears during delivery. However, larger transfers of fetal erythrocytes into the maternal system may signal underlying pathology and require clinical evaluation.

Several mechanisms can contribute to the presence of blood cells in the maternal bloodstream originating from the fetus. These include:

1. Placental structural disruption
   • Damage to the placental interface can allow fetal vessels to communicate directly with maternal vessels.
   • This is commonly seen in placental abruption, where premature separation of the placenta leads to leakage of fetal blood cells across the placenta.
2. Mechanical trauma during pregnancy
   • Cases of maternal trauma, such as motor vehicle accidents, falls, or blunt abdominal injuries, may cause microscopic tears in placental tissue.
   • These injuries can allow fetal blood cells to cross the placental barrier and enter the maternal bloodstream.
3. Obstetric or medical procedures
   • Certain interventions in obstetrics, including amniocentesis, chorionic villus sampling, or external cephalic version, may disrupt placental vessels.
   • These procedures occasionally lead to small episodes of fetal bleed.
4. Spontaneous transfer during pregnancy or delivery
   • Even without trauma or complications, small numbers of fetal blood cells may be detected during labor due to uterine contractions and placental microtrauma.

The detection of fetal red blood cells circulating within maternal blood is therefore clinically significant. One of the most widely used diagnostic tools for identifying these cells is the Kleihauer-Betke Test, a laboratory blood test designed to identify cells containing fetal hemoglobin within a maternal blood sample. The kleihauer-betke test, sometimes called the kb test or kleihauer test, detects fetal blood cells through a staining process that differentiates them from adult red blood cells.

Using a prepared blood smear, laboratory personnel apply a specialized stain that highlights fetal red blood cells due to the resistance of fetal hemoglobin to acid exposure. This process allows clinicians to estimate the percentage of fetal cells within the maternal sample and evaluate whether a clinically significant fetal-maternal hemorrhage has occurred.

Clinical significance of fetal hemorrhage in obstetrics

The detection of fetal hemorrhage is an important aspect of maternal–fetal medicine because significant blood transfer from the fetus to the mother can lead to serious complications affecting both patients. When large volumes of fetal blood are lost, the fetus may experience a reduction in circulating blood volume and oxygen-carrying capacity, which can compromise fetal health.

Some of the major clinical consequences associated with significant fetomaternal hemorrhage include:

1. Fetal anemia and neonatal complications

Large transfers of fetal blood cells into the maternal system may cause neonatal anemia, a condition in which the newborn has insufficient red blood cells to carry oxygen effectively. Clinical consequences may include:

• Reduced oxygen delivery to tissues
• Cardiovascular strain in the newborn
• Increased risk of long-term neurological complications in severe cases

When the loss of fetal blood is substantial, the fetus may also develop hypovolemic shock, which can progress to fetal demise or fetal death if untreated.

2. Rh incompatibility and hemolytic disease

Another critical concern involves immune reactions related to the Rh blood group system. When a pregnant individual is rh negative and the fetus is rh-positive, exposure to fetal blood cells may trigger the maternal immune system to produce an antibody against the Rh antigen.

This immune response can lead to:

• Destruction of fetal erythrocytes
• Development of hemolytic disease
• Severe disease of the fetus in future pregnancies

If untreated, this immune reaction may lead to complications such as severe fetal anemia, hydrops fetalis, or perinatal death.

3. Obstetric complications associated with fetal hemorrhage

Significant fetal hemorrhage may also contribute to various pregnancy complications, including:

• Preterm labor or risk of preterm labor following trauma or placental disruption
• Abnormal fetal monitoring findings indicating fetal distress
• Reduced fetal movement due to decreased oxygen delivery

In extreme cases, massive fetal bleed can result in acute circulatory collapse in the fetus.

Because these complications may develop rapidly, early detection of cells in the maternal circulation originating from the fetus is essential. The Kleihauer-Betke Test provides a practical method for identifying the number of fetal cells present and estimating the volume of blood transferred, often measured in ml of fetal blood.

Why the Kleihauer-Betke test remains important in modern maternal care

Despite advances in diagnostic technology, the Kleihauer-Betke Test remains an important tool in the evaluation of fetal-maternal hemorrhage in contemporary clinical practice. Several factors contribute to its continued relevance in modern healthcare settings.

1. Reliable identification of fetal blood cells

The kleihauer-betke stain uses the acid elution or acid elution test technique to differentiate fetal red blood cells from adult red blood cells. The process works as follows:

1. A blood smear of maternal blood is prepared on a microscope slide.
2. The slide is exposed to an acidic solution that removes hemoglobin from maternal erythrocytes.
3. Because of the resistance of fetal hemoglobin, cells containing fetal hemoglobin remain intact.
4. After staining, fetal cells appear bright red, while maternal cells appear pale.

By counting the number of fetal cells relative to the total number of red blood cells, laboratory personnel can calculate the percentage of fetal cells circulating within the maternal bloodstream.

2. Guiding treatment decisions

The Kleihauer-Betke Test is essential for determining appropriate clinical management following suspected feto-maternal hemorrhage. Test results help clinicians decide whether interventions such as the following are required:

• Administration of rh immune globulin (also known as anti-D) for negative mothers exposed to rh-positive fetal cells
• Additional fetal monitoring to assess fetal well-being
• Emergency delivery or transfusion in cases of severe fetal hemorrhage

The kb results obtained from the test allow clinicians to determine the approximate volume of fetal blood transferred and calculate appropriate dosing of immune globulin, which helps prevent Rh sensitization and protects future pregnancies.

3. Accessibility and practicality in clinical laboratories

Another reason the Kleihauer-Betke Test remains widely used is its practicality. The test can be performed in most hospital clinical laboratory environments without specialized equipment. Compared with advanced methods such as flow cytometry, the Kleihauer-Betke Test is:

• Less expensive
• Easier to perform
• Available in a wider range of healthcare settings

Although flow cytometry can detect HBF with greater sensitivity, the Kleihauer-Betke Test remains a reliable first-line diagnostic method for evaluating fetomaternal hemorrhage.

4. Ongoing relevance in obstetric research and practice

The scientific foundation of the test originates from the work of Enno Kleihauer, whose discovery of the resistance of fetal hemoglobin to acid exposure led to the development of the betke staining method. Today, the kleihauer–betke test continues to be referenced in clinical guidelines and research literature, including studies published in the Journal of Obstetrics.

Because of its diagnostic value, the Kleihauer-Betke Test remains an important component of obstetric care. By identifying fetal blood cells in the maternal bloodstream, the test provides critical information about placental integrity, potential fetal hemorrhage, and the need for preventive therapies that protect both the current pregnancy and future pregnancies.

Scientific Principles Behind the Kleihauer-Betke Stain and Fetal Cell Detection

Understanding the laboratory science behind the Kleihauer-Betke Test is essential for interpreting how this diagnostic blood test detects fetal hemorrhage. The method relies on a fundamental biological difference between fetal hemoglobin and adult hemoglobin found in red blood cells. Because these two forms of hemoglobin behave differently when exposed to acidic conditions, laboratory specialists can distinguish fetal blood cells from maternal cells on a microscope slide.

The kleihauer-betke stain, sometimes referred to as the kleihauer–betke test technique, is therefore not simply a routine staining procedure. It is based on a biochemical principle that exploits the unique resistance of fetal hemoglobin to acid exposure. Through this process, fetal erythrocytes remain stained and visible under a microscope, while adult red blood cells lose their color and appear pale.

The following subsections explain the key scientific concepts that make the Kleihauer-Betke Test effective in identifying fetal cells circulating within maternal blood.

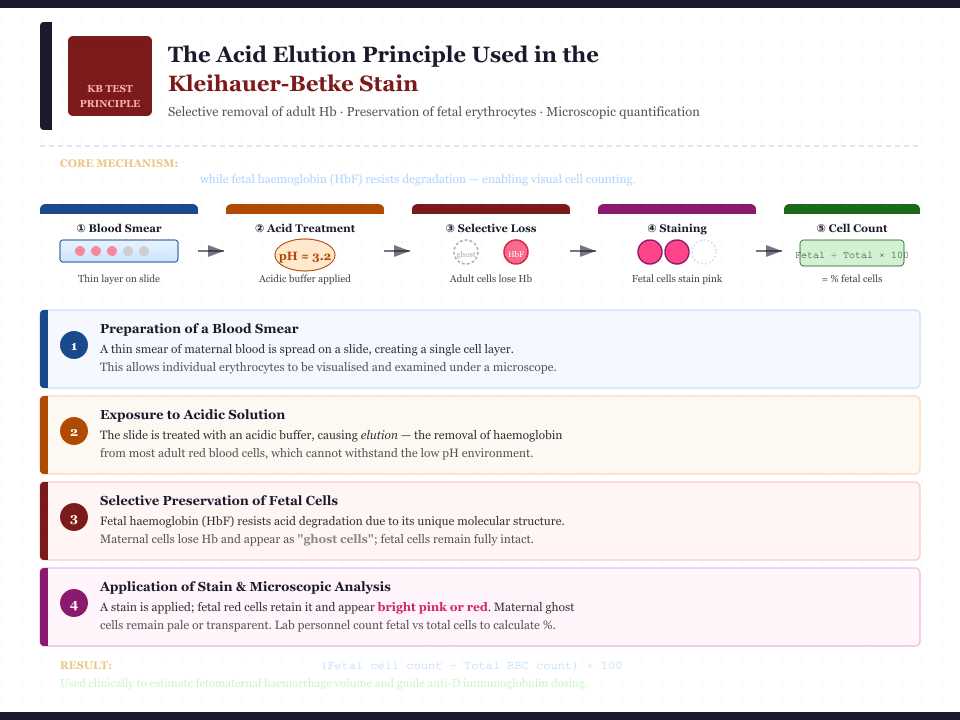

The acid elution principle used in the Kleihauer-Betke stai

The central mechanism behind the kleihauer-betke test is known as the acid elution or acid elution test method. This laboratory technique selectively removes hemoglobin from maternal erythrocytes while preserving cells containing fetal hemoglobin.

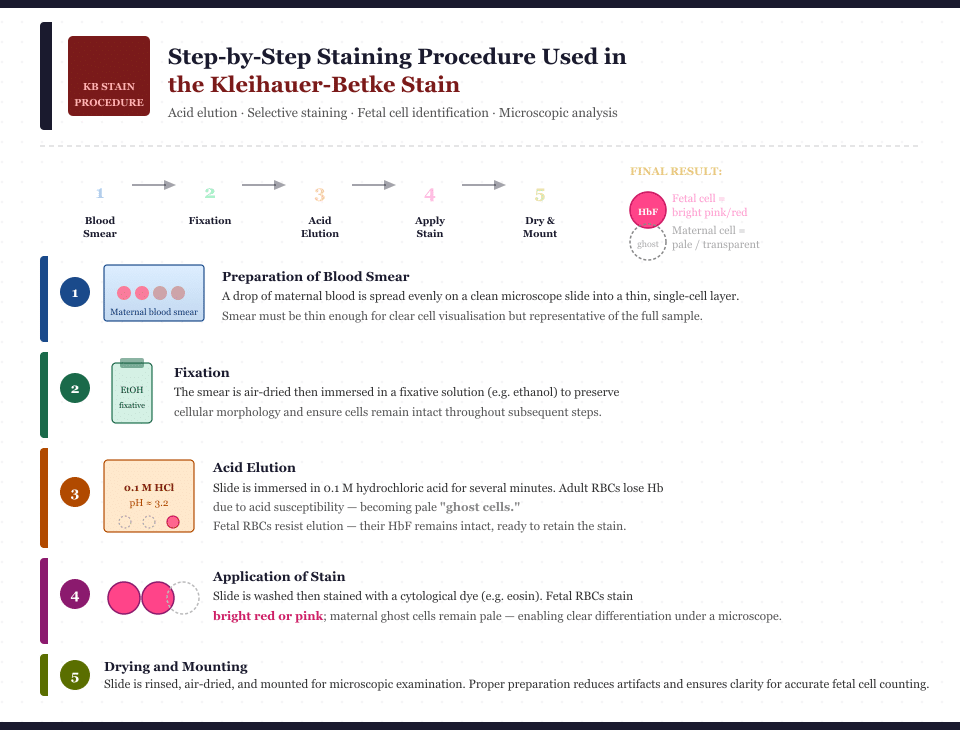

The procedure can be summarized in several stages:

1. Preparation of a Blood Smear
   • A thin blood smear is prepared from a sample of maternal blood.
   • The smear spreads the blood cells in the maternal sample into a single layer, allowing individual cells to be examined under a microscope.
2. Exposure to Acidic Solution
   • The slide is treated with an acidic buffer solution.
   • This solution causes elution, meaning the removal of hemoglobin from most adult red blood cells.
3. Selective Preservation of Fetal Cells
   • Because of the unique structure of fetal hemoglobin, fetal red blood cells resist acid degradation.
   • As a result, maternal cells lose their hemoglobin and appear as “ghost cells,” while fetal blood cells remain intact.
4. Application of Stain
   • A stain is applied after acid exposure.
   • Fetal red cells retain the stain and appear bright pink or red under microscopic examination, whereas maternal cells appear pale or transparent.
5. Microscopic Analysis
   • Laboratory personnel count the number of fetal cells observed relative to the total number of red blood cells on the slide.
   • This allows calculation of the percentage of fetal cells present in the maternal sample.

This staining process makes the Kleihauer-Betke Test a practical diagnostic tool for identifying cells in the maternal circulation that originated from the fetus. The technique was first described by the German physician Enno Kleihauer, whose research established the foundation for what is sometimes called the betke staining method.

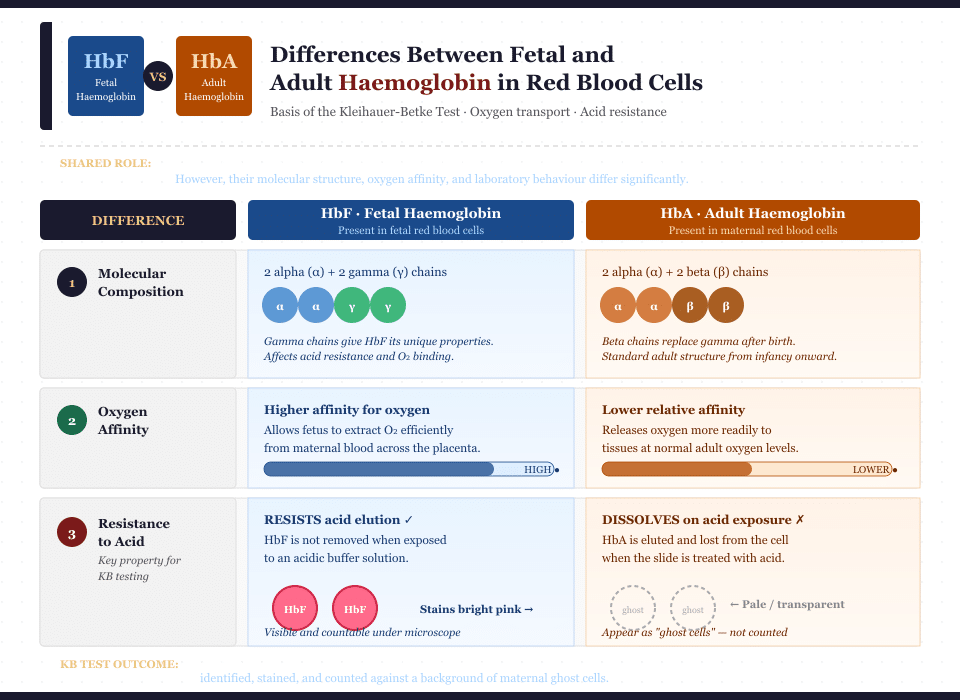

Differences between fetal hemoglobin and adult hemoglobin in red blood cells

The success of the Kleihauer-Betke Test depends on structural differences between fetal hemoglobin and adult hemoglobin within red blood cells.

Hemoglobin is the oxygen-carrying protein responsible for transporting oxygen from the lungs to body tissues. However, the form present in the fetus differs slightly from that found in adults.

Key differences include:

1. Molecular Composition

• Fetal hemoglobin (HbF) contains two alpha and two gamma globin chains.
• Adult hemoglobin contains two alpha and two beta chains.

This difference in protein structure affects how hemoglobin interacts with chemical solutions used in laboratory testing.

2. Increased Oxygen Affinity

• Fetal hemoglobin has a higher affinity for oxygen compared with adult hemoglobin.
• This property allows the fetus to efficiently extract oxygen from maternal blood across the placenta.

3. Resistance to Acid Exposure

• One of the most important properties for laboratory testing is the resistance of fetal hemoglobin to acid treatment.
• When exposed to acidic solutions during the acid elution test, adult hemoglobin dissolves and is removed from adult red blood cells.
• In contrast, cells containing fetal hemoglobin retain their hemoglobin and remain visible after staining.

Because of these biochemical differences, fetal blood cells remain brightly stained during microscopic examination, allowing laboratory specialists to distinguish them from maternal cells.

In addition to fetal hemoglobin, the fetal erythrocytes also tend to be slightly larger than adult erythrocytes. This size difference sometimes assists laboratory personnel in recognizing fetal red blood cells during microscopic analysis.

Identification of fetal cells in maternal blood samples

Once the staining process is complete, the final stage of the Kleihauer-Betke Test involves identifying and counting fetal cells present within maternal blood. This step is crucial because it allows clinicians to estimate the volume of fetal blood that has entered the maternal circulation.

The identification process involves several steps:

1. Microscopic Examination

A trained laboratory professional examines the stained blood smear using a microscope. The slide contains thousands of erythrocytes from the maternal sample, including:

• Pale or ghost-like adult red blood cells
• Brightly stained fetal red blood cells

These fetal blood cells appear distinctly colored because they retain the stain after acid elution.

2. Counting the Number of Fetal Cells

The laboratory technologist counts the number of fetal cells observed in a specified number of total cells, often several thousand erythrocytes.

For example:

• 20 fetal red blood cells observed among 2000 total cells
• This result corresponds to 1% fetal cells

The calculated percentage of fetal cells provides an estimate of how much fetal blood has entered the maternal bloodstream.

3. Estimating the Volume of Fetal Hemorrhage

Once the percentage of fetal cells is determined, clinicians can estimate the approximate volume of fetal blood transferred into maternal circulation. This value is essential for evaluating the severity of fetal hemorrhage and determining appropriate clinical management.

Example clinical scenario

Consider a pregnant patient involved in a motor vehicle accident. Because cases of maternal trauma increase the risk of feto-maternal hemorrhage, clinicians may order the Kleihauer-Betke Test. If laboratory analysis reveals a significant number of fetal erythrocytes in maternal blood, the results may indicate a substantial fetal bleed requiring immediate monitoring and intervention.

4. Clinical Interpretation

The results of the Kleihauer-Betke Test help clinicians:

• Detect fetal-maternal hemorrhage
• Estimate the severity of fetal blood loss
• Determine whether treatment such as transfusion or rh immune globulin may be required

In modern obstetrics, the identification of cells in the maternal circulation originating from the fetus provides valuable insight into placental integrity and fetal well-being.

Clinical Indications for the Kleihauer-Betke Test in Obstetric Practice

The Kleihauer-Betke Test plays an important role in modern obstetrics because it helps clinicians detect and quantify fetal hemorrhage when fetal blood cells enter maternal blood. Although small transfers of blood between the fetus and mother may occur naturally during pregnancy or delivery, larger transfers may indicate pathology and require immediate clinical attention.

The Kleihauer-Betke Test is therefore commonly ordered when healthcare providers suspect feto-maternal hemorrhage or when specific obstetric events increase the likelihood that fetal blood has crossed the placental barrier. By identifying cells in the maternal circulation that contain fetal hemoglobin, clinicians can estimate the percentage of fetal cells present and determine the severity of the bleeding event.

The following clinical scenarios represent the most common indications for performing the Kleihauer-Betke Test in obstetric practice.

Evaluation of suspected feto-maternal hemorrhage

One of the primary indications for the Kleihauer-Betke Test is the evaluation of suspected fetomaternal hemorrhage (FMH). This condition occurs when fetal blood cells pass from the fetal circulation into the maternal vascular system through disruptions in placental integrity.

Although small amounts of fetal blood may enter maternal circulation during normal pregnancy, large transfers may cause serious complications for the mother and fetus. Identifying fetal erythrocytes in maternal blood allows clinicians to estimate the amount of fetal blood loss and assess potential risks to the fetus.

Clinical signs that may raise suspicion of fetal-maternal hemorrhage include:

• Sudden decrease in fetal movement
• Abnormal fetal monitoring findings such as persistent fetal heart rate decelerations
• Unexplained fetal distress during pregnancy
• Evidence of neonatal anemia after birth

In such cases, the Kleihauer-Betke Test can detect fetal red blood cells circulating within the maternal bloodstream. The laboratory identifies cells containing fetal hemoglobin, allowing clinicians to determine the number of fetal cells present and calculate the percentage of fetal cells relative to maternal erythrocytes.

Example clinical scenario

A pregnant patient presents with decreased fetal movement during the third trimester. Ultrasound findings suggest possible fetal anemia. A Kleihauer-Betke Test may be ordered to evaluate whether a significant fetal bleed has occurred. If positive results show an elevated percentage of fetal cells in the maternal sample, this finding may confirm the presence of significant fetomaternal hemorrhage requiring immediate monitoring or intervention.

Use of the test in placental abruption and other placental complications

Another major indication for the Kleihauer-Betke Test is the evaluation of placental disorders that disrupt the interface between maternal and fetal blood vessels. Among these conditions, placental abruption is one of the most clinically significant.

Placental abruption occurs when the placenta prematurely separates from the uterine wall before delivery. This separation damages placental blood vessels and may allow fetal blood cells to enter the maternal circulation. In severe cases, the resulting fetal hemorrhage can compromise oxygen delivery to the fetus.

Clinical features of placental abruption may include:

• Vaginal bleeding
• Abdominal pain or uterine tenderness
• Abnormal fetal heart rate patterns
• Signs of fetal distress

In these situations, the Kleihauer-Betke Test helps clinicians determine whether a substantial fetal bleed has occurred. Detecting fetal red blood cells in maternal circulation may indicate that blood from the fetal compartment has crossed the placenta.

Other placental complications that may lead to testing include:

1. Placenta previa with bleeding
2. Placental trauma during obstetric procedures
3. Placental insufficiency associated with fetal distress

When these conditions are suspected, the Kleihauer-Betke Test provides valuable information about the extent of fetal blood transfer and helps guide clinical management decisions.

Application of the test in cases of maternal trauma during pregnancy

Physical injury during pregnancy represents another important indication for the Kleihauer-Betke Test. Cases of maternal trauma, particularly those involving blunt abdominal force, may disrupt placental vessels and allow fetal blood cells to cross into maternal circulation.

Common examples of trauma that may lead to feto-maternal hemorrhage include:

• Motor vehicle collisions
• Falls or blunt abdominal injuries
• Physical assault
• Accidental abdominal impact during pregnancy

When trauma occurs, clinicians must evaluate the possibility of fetal bleed even if external injuries appear minor. In some cases, trauma may produce microscopic placental tears that allow fetal blood cells to pass into maternal blood without obvious maternal symptoms.

For this reason, trauma guidelines in obstetrics often recommend performing the Kleihauer-Betke Test in pregnant patients experiencing significant abdominal injury.

The test serves several clinical purposes in these situations:

• Detecting fetal erythrocytes in the maternal bloodstream
• Estimating the amount of fetal blood transferred
• Guiding additional fetal monitoring or imaging studies
• Determining the need for rh immune globulin in rh negative patients

Example clinical scenario

A pregnant patient involved in a motor vehicle accident presents to the emergency department. Although initial examination shows no severe maternal injuries, clinicians order the Kleihauer-Betke Test to evaluate for possible feto-maternal hemorrhage. If the laboratory identifies a significant number of fetal cells, the patient may require extended monitoring and treatment to prevent complications affecting the fetus.

Additional obstetric situations requiring fetal cell detection

Beyond trauma and placental complications, several additional obstetric scenarios may require the use of the Kleihauer-Betke Test to detect fetal blood cells in maternal circulation. These situations often involve events that increase the likelihood of disruption to the placental barrier.

Common additional indications include:

1. After delivery of an Rh-positive infant

When a newborn is rh positive and the mother is rh negative, clinicians must determine the volume of fetal blood transferred during childbirth. The Kleihauer-Betke Test helps estimate the percentage of fetal cells, which is used to calculate the correct dose of rh immune globulin or anti-d to prevent maternal sensitization.

2. Following invasive obstetric procedures

Certain procedures may increase the risk of feto-maternal hemorrhage, including:

• Amniocentesis
• Chorionic villus sampling
• External cephalic version
• Intrauterine fetal procedures

Because these procedures can disrupt placental vessels, the Kleihauer-Betke Test may be performed afterward to confirm whether fetal blood cells have entered maternal circulation.

3. Unexplained fetal distress

If fetal heart monitoring indicates distress without a clear cause, clinicians may investigate possible fetal hemorrhage. Identifying fetal erythrocytes in maternal blood may explain reduced oxygen delivery to the fetus.

4. Unexplained neonatal anemia

After delivery, infants with severe neonatal anemia may have experienced significant fetal bleed before birth. Retrospective evaluation with the Kleihauer-Betke Test can help confirm whether fetal-maternal hemorrhage occurred.

Laboratory Procedure of the Kleihauer-Betke Test

The Kleihauer-Betke Test is a highly specialized blood test designed to detect and quantify fetal cells in maternal blood. Accurate laboratory performance is essential because the results directly influence clinical decisions regarding feto-maternal hemorrhage, rh immune globulin dosing, and potential transfusion requirements. The procedure involves several critical steps, including careful collection and preparation of maternal blood samples, precise staining using the kleihauer-betke stain, microscopic identification of fetal red blood cells, and calculation of the percentage of fetal cells. Each stage contributes to the reliability and clinical utility of the test.

Collection and preparation of maternal blood samples

Proper collection of maternal blood is the first and one of the most important steps in performing the Kleihauer-Betke Test. Errors during sample collection can result in false negatives or false positives, compromising clinical interpretation.

Key considerations include:

1. Sample Type and Volume
   • Typically, 2–5 mL of maternal blood is collected in an EDTA anticoagulated tube to prevent clotting.
   • Anticoagulant choice is critical because clot formation can trap fetal erythrocytes, leading to inaccurate results.
2. Labeling and Timing
   • The sample must be clearly labeled with patient identifiers, gestational age, and the clinical indication for testing (e.g., placental abruption, cases of maternal trauma, or suspected feto-maternal hemorrhage).
   • Early collection after suspected events ensures more accurate detection of fetal red blood cells in maternal circulation.
3. Avoiding Contamination
   • Care must be taken to prevent hemolysis or contamination with maternal tissue or adult red blood cells, which may interfere with the staining process.
   • Using standard phlebotomy techniques ensures integrity of the maternal blood sample.
4. Sample Handling
   • Once collected, the sample should be gently mixed and processed promptly to maintain fetal cell viability.
   • Delayed processing can cause morphological changes in fetal erythrocytes, complicating microscopic identification.

Step-by-step staining procedure used in the Kleihauer-Betke stain

The distinguishing feature of the Kleihauer-Betke Test is its use of acid elution to selectively stain fetal red blood cells. This procedure allows laboratory personnel to differentiate cells containing fetal hemoglobin from adult red blood cells. The standard kleihauer-betke stain procedure can be summarized as follows:

1. Preparation of Blood Smear
   • A thin blood smear is made by placing a drop of maternal blood on a clean microscope slide and spreading it evenly.
   • Smears should be thin enough to allow clear visualization of individual red blood cells but thick enough to ensure a representative sample.
2. Fixation
   • The smear is air-dried and then fixed in a fixative solution, such as ethanol, to preserve cellular morphology.
3. Acid Elution
   • The slide is immersed in a weak acidic solution (typically 0.1 M hydrochloric acid) for several minutes.
   • During this step, adult red blood cells lose hemoglobin due to acid susceptibility, becoming pale or “ghost” cells.
   • In contrast, fetal red blood cells resist acid elution because of the resistance of fetal hemoglobin, remaining intact and able to retain stain.
4. Application of Stain
   • After acid treatment, the slide is washed and stained with a cytological stain (e.g., eosin or another red dye).
   • Fetal red blood cells appear bright red or pink, while maternal erythrocytes remain pale, allowing differentiation under a microscope.
5. Drying and Mounting
   • The slide is rinsed, allowed to dry, and mounted for microscopic examination. Proper preparation ensures clarity and reduces artifacts that could obscure fetal cells.

Example: In a case of suspected placental abruption, maternal blood collected shortly after the event undergoes the above staining procedure. Brightly stained fetal red blood cells appear against a pale background of maternal erythrocytes, providing a clear visual confirmation of feto-maternal hemorrhage.

Microscopic identification and counting of fetal red blood cells

After staining, laboratory personnel perform a microscopic evaluation to identify fetal erythrocytes within the maternal smear. This step is crucial because accurate detection ensures the clinical relevance of the test.

Key steps include:

1. Slide Examination
   • Using a high-power microscope (typically 400x magnification), the technician scans multiple fields to locate fetal red blood cells.
   • Bright red cells are counted as fetal red blood cells, whereas pale adult red blood cells are ignored.
2. Counting Methodology
   • Standard practice involves counting at least 2,000–5,000 total red blood cells to ensure statistical accuracy.
   • The number of fetal cells observed is recorded for later calculation.
3. Quality Control
   • Counting is often performed by two independent laboratory personnel to reduce observer bias.
   • Discrepancies are resolved by consensus or repeated counting to improve reliability.

Example: In cases of maternal trauma, the technologist identifies 30 fetal red blood cells among 3,000 total cells. This raw count provides the basis for estimating the severity of fetal hemorrhage.

Calculating the percentage of fetal cells in maternal circulation

Once the number of fetal cells has been determined, clinicians use the data to calculate the percentage of fetal cells in maternal blood. This calculation is essential for evaluating the severity of feto-maternal hemorrhage and guiding clinical decisions.

Calculation formula:

Percentage of fetal cells=(Number of fetal cellsTotal number of red blood cells counted)×100\text{Percentage of fetal cells} = \left( \frac{\text{Number of fetal cells}}{\text{Total number of red blood cells counted}} \right) \times 100Percentage of fetal cells=(Total number of red blood cells countedNumber of fetal cells​)×100

Example calculation:

• Total cells counted: 3,000
• Fetal cells observed: 30

Percentage of fetal cells=(303000)×100=1%\text{Percentage of fetal cells} = \left( \frac{30}{3000} \right) \times 100 = 1\%Percentage of fetal cells=(300030​)×100=1%

This 1% fetal cells result allows clinicians to estimate the ml of fetal blood lost using established formulas that account for maternal blood volume. For example, an estimated 1% fetal cells in 5 liters of maternal blood corresponds roughly to 50 mL of fetal blood transferred into maternal circulation.

Clinical application:

• If the mother is rh negative, the calculated fetal blood volume informs the correct dose of rh immune globulin (e.g., anti-D) to prevent hemolytic disease in future pregnancies.
• In cases of massive fetal-maternal hemorrhage, the Kleihauer-Betke Test result may also prompt additional fetal monitoring or transfusion interventions.

Interpretation of Kleihauer-Betke Test Results

Accurate interpretation of Kleihauer-Betke Test results is critical in obstetrics, as it informs the assessment of fetal-maternal hemorrhage (FMH), guides transfusion decisions, and determines the need for rh immune globulin administration. Understanding how to interpret the percentage of fetal cells, distinguish positive and negative KB test findings, and follow standardized laboratory reporting practices ensures that both maternal and fetal outcomes are optimized.

Determining the severity of fetal-maternal hemorrhage

The primary clinical goal of the Kleihauer-Betke Test is to quantify the magnitude of fetal blood transferred into maternal circulation. This quantification is derived from the percentage of fetal cells observed in the maternal blood smear.

Key points in severity determination:

1. Low-volume hemorrhage
   • Typically <1% fetal cells in maternal blood.
   • Usually clinically insignificant; may occur naturally during normal pregnancy or at delivery.
   • Minimal impact on fetal health, and routine rh immune globulin administration may suffice in rh-negative mothers.
2. Moderate fetal-maternal hemorrhage
   • Approximately 1–5% fetal cells.
   • May indicate clinically relevant bleeding due to events such as placental abruption, minor maternal trauma, or invasive obstetric procedures.
   • Fetal monitoring and possible interventions may be necessary depending on gestational age and fetal condition.
3. Massive hemorrhage
   • Greater than 5% fetal cells or evidence of more than 30 mL of fetal blood in maternal circulation.
   • Carries high risk for fetal anemia, fetal demise, or neonatal anemia.
   • Requires immediate clinical intervention, which may include fetal transfusion, urgent delivery planning, or administration of appropriately calculated rh immune globulin in rh-negative mothers.

Example scenario:
A patient with placental abruption undergoes a Kleihauer-Betke Test, revealing 4% fetal red blood cells in maternal circulation. This moderate feto-maternal hemorrhage alerts clinicians to monitor the fetus closely for signs of anemia and plan for potential neonatal care post-delivery.

Clinical thresholds used to estimate fetal blood loss

Clinicians often use the percentage of fetal cells to estimate the ml of fetal blood lost, which informs treatment decisions:

1. Calculation formula

Estimated fetal blood loss (ml)=Maternal blood volume (ml)×Percentage of fetal cells100\text{Estimated fetal blood loss (ml)} = \text{Maternal blood volume (ml)} \times \frac{\text{Percentage of fetal cells}}{100}Estimated fetal blood loss (ml)=Maternal blood volume (ml)×100Percentage of fetal cells​

• Maternal blood volume is generally considered approximately 5,000 mL in term pregnancy.
• Example: If a positive KB test shows 2% fetal cells, estimated fetal blood loss = 5,000 × 0.02 = 100 mL.

2. Clinical interpretation
   • <30 mL fetal blood loss: Usually requires standard rh immune globulin dosing if the mother is rh negative.
   • 30–60 mL: May require additional anti-D dosing.
   • 60 mL: Often classified as massive FMH, with consideration for fetal monitoring, neonatal support, and adjustment of rh immune globulin therapy.

This method allows precise estimation of fetal blood loss, enabling informed decisions about maternal and fetal interventions.

Understanding positive and negative Kleihauer-Betke test results

Interpreting the KB test requires differentiation between positive and negative findings:

1. Positive KB test
   • Presence of stained fetal red blood cells in maternal circulation.
   • Indicates fetal-maternal hemorrhage, the extent of which is determined by the percentage of fetal cells.
   • May be observed after events such as placental abruption, cases of maternal trauma, or invasive procedures.
   • Clinical implications:
     • Estimation of fetal blood volume loss
     • Determination of rh immune globulin dosage for rh-negative mothers
     • Planning for fetal monitoring and neonatal evaluation
2. Negative KB test
   • Absence or minimal (<0.1%) fetal red blood cells in maternal blood.
   • Suggests that significant fetal hemorrhage has not occurred.
   • Clinicians may consider routine follow-up but generally no urgent intervention is required.

Example:
A mother presents following a minor fall. The KB test is negative, indicating that no significant fetal-maternal hemorrhage has occurred. Routine fetal monitoring continues, but no anti-D adjustments are needed if the mother is rh-negative.

Considerations:

• False positives can occur due to maternal hemoglobin variants, technical staining errors, or misidentification of adult red blood cells.
• False negatives may occur if testing is performed too early after fetal hemorrhage or if fetal cells are unevenly distributed in maternal circulation.

Laboratory reporting standards in obstetrics

Standardized reporting is essential to ensure clinicians accurately interpret Kleihauer-Betke Test results:

1. Format of reporting
   • Laboratory reports should include:
     • Total number of red blood cells counted
     • Number of fetal cells identified
     • Percentage of fetal cells
     • Estimated volume of fetal blood loss (optional)
     • Interpretation notes regarding positive or negative test
     • Any limitations or potential sources of error
2. Timing and turnaround
   • Rapid processing is recommended in acute obstetric events such as placental abruption or maternal trauma to inform immediate clinical decisions.
3. Integration with clinical context
   • Laboratories should highlight clinical significance:
     • Low percentages may not require intervention but should be monitored.
     • High percentages require immediate clinician awareness for transfusion or fetal monitoring.
4. Quality assurance
   • Recounts or dual verification may be performed to ensure accuracy of fetal cell quantification.
   • Any observed artifacts or suspected technical errors should be noted to prevent misinterpretation.

Example:
A laboratory report might read:

• Total cells counted: 3,000
• Fetal cells identified: 60
• Percentage of fetal cells: 2%
• Estimated fetal blood loss: 100 mL
• Interpretation: Positive KB test; moderate feto-maternal hemorrhage. Consider rh immune globulin administration if mother is rh-negative.

Clinical Applications: Guiding Transfusion and Rh Immune Globulin Therapy

The Kleihauer-Betke Test serves as a cornerstone in the clinical management of feto-maternal hemorrhage (FMH). By quantifying fetal red blood cells in maternal circulation, the KB test enables precise estimation of fetal blood volume loss, guides appropriate transfusion decisions, and informs rh immune globulin dosing in rh-negative mothers. These applications are essential to prevent hemolytic disease of the fetus, reduce neonatal morbidity, and ensure maternal safety in high-risk obstetric scenarios.

Estimating fetal blood volume loss using the Kleihauer-Betke test

Accurate estimation of fetal blood loss is critical for assessing the clinical severity of fetal-maternal hemorrhage and guiding intervention strategies. The Kleihauer-Betke Test provides a quantitative assessment by determining the percentage of fetal cells in maternal blood.

Key steps in estimation:

1. Calculation of fetal blood volume transferred

Fetal blood loss (ml)=Maternal blood volume (ml)×Percentage of fetal cells100\text{Fetal blood loss (ml)} = \text{Maternal blood volume (ml)} \times \frac{\text{Percentage of fetal cells}}{100}Fetal blood loss (ml)=Maternal blood volume (ml)×100Percentage of fetal cells​

• Maternal blood volume in term pregnancy is generally estimated at 5,000 mL.
• For example, a positive KB test showing 3% fetal cells indicates:

5,000×0.03=150 mL of fetal blood in maternal circulation5,000 \times 0.03 = 150 \text{ mL of fetal blood in maternal circulation}5,000×0.03=150 mL of fetal blood in maternal circulation

2. Clinical interpretation
   • <30 mL: Minimal FMH, usually requiring only standard rh immune globulin prophylaxis.
   • 30–60 mL: Moderate FMH; may require additional anti-D.
   • 60 mL: Significant FMH, risk of fetal anemia, necessitating further fetal monitoring and consideration of transfusion.
3. Clinical scenarios:
   • After placental abruption, a KB test revealing 5% fetal red blood cells indicates substantial fetal blood loss, prompting urgent evaluation of fetal outcomes.
   • In cases of maternal trauma, estimation of fetal blood volume is essential for determining whether emergency transfusion or intervention is warranted.

Determining Rh immune globulin dosing in Rh-negative maternal patients

For rh-negative mothers, exposure to rh-positive fetal blood poses a risk of alloimmunization, which can result in hemolytic disease of the fetus or newborn in future pregnancies. The Kleihauer-Betke Test is essential in calculating the correct rh immune globulin (anti-D) dose.

Calculation and clinical application:

1. Standard prophylaxis:
   • Routine prophylactic rh immune globulin (300 μg or 1500 IU) is administered at 28 weeks gestation and postpartum if the infant is rh positive.
2. Dose adjustment based on KB test:
   • 1 vial of 300 μg protects against up to 30 mL of fetal red blood cells.
   • Formula to calculate required vials:

Number of vials=Estimated fetal blood loss (ml)30 mL\text{Number of vials} = \frac{\text{Estimated fetal blood loss (ml)}}{30 \text{ mL}}Number of vials=30 mLEstimated fetal blood loss (ml)​

Example:

• KB test shows 150 mL of fetal blood in maternal circulation.
• Required anti-D dose = 150 ÷ 30 = 5 vials (300 μg each) to fully prevent maternal sensitization.

3. Timing of administration:
   • Administered promptly after detection of feto-maternal hemorrhage to ensure effective prophylaxis.
   • Delays can increase the risk of maternal antibody formation against fetal erythrocytes, potentially leading to disease of the fetus in future pregnancies.

Indications for maternal or neonatal transfusion

The KB test also guides decisions regarding maternal or neonatal transfusion by quantifying the magnitude of fetal hemorrhage.

Maternal transfusion:

• Rarely needed unless the mother experiences concurrent maternal blood loss (e.g., postpartum hemorrhage).
• KB results primarily inform maternal rh immune globulin therapy rather than direct transfusion.

Neonatal transfusion:

• Indicated when significant fetal-maternal hemorrhage has resulted in fetal anemia.
• Signs prompting transfusion include:
  • Hematocrit below gestational norm
  • Clinical symptoms of anemia (tachycardia, pallor)
  • Severe fetal hemorrhage identified via KB test

Example:
A term infant delivered after placental abruption is found to have hemoglobin 8 g/dL. The KB test indicated 6% fetal red blood cells in maternal circulation. The neonate requires blood transfusion to correct anemia and stabilize oxygen-carrying capacity.

Clinical decision-making following significant fetal hemorrhage

Once feto-maternal hemorrhage is quantified, clinicians use KB test results to guide a structured decision-making process:

1. Assess severity
   • Determine percentage of fetal cells and estimated ml of fetal blood loss.
   • Moderate to massive hemorrhage triggers close fetal monitoring.
2. Plan interventions
   • For rh-negative mothers, calculate precise anti-D dose based on KB results.
   • Consider urgent delivery or in utero fetal transfusion if severe fetal anemia is suspected.
3. Coordinate neonatal care
   • Alert neonatal intensive care teams for potential neonatal anemia, monitoring, and transfusion needs.
   • Review KB findings to anticipate complications in the fetus, including preterm labor or fetal demise.
4. Document and communicate
   • All KB results, calculations, and interventions must be clearly documented in maternal and fetal records.
   • Effective communication ensures continuity of care between obstetrics, laboratory, and neonatology teams.

Example scenario:
A rh-negative mother presents after a motor vehicle accident. The KB test reveals 120 mL of fetal blood in maternal circulation. Immediate administration of anti-D, continuous fetal monitoring, and planning for potential neonatal transfusion allow the healthcare team to prevent hemolytic disease of the fetus, address fetal anemia, and optimize fetal outcomes.

Alternative Methods for Detecting Fetal Cells: Flow Cytometry and Advanced Techniques

While the Kleihauer-Betke Test remains a widely used and practical method for detecting fetal-maternal hemorrhage (FMH), modern obstetric diagnostics have introduced alternative techniques that offer improved sensitivity and specificity. Among these, flow cytometry has become increasingly prominent, allowing clinicians and laboratory personnel to detect fetal cells in maternal blood with greater precision, particularly in complex or high-risk situations. Understanding these advanced techniques, their advantages and limitations, and appropriate clinical applications is essential for optimal maternal and fetal care.

Flow cytometry for detecting fetal cells in maternal blood

Flow cytometry is a laboratory technique that utilizes fluorescent-labeled antibodies to identify and quantify fetal erythrocytes in maternal circulation. The method is highly sensitive and can detect very low levels of fetal red blood cells, even below the detection limits of the Kleihauer-Betke Test.

Key features of flow cytometry include:

1. Detection principle
   • Uses antibodies targeting fetal hemoglobin (HbF) or fetal-specific antigens.
   • Fluorescent markers bind to fetal erythrocytes, allowing their detection as they pass through a laser-equipped flow cytometer.
   • The instrument can simultaneously differentiate maternal and fetal red blood cells based on size, granularity, and fluorescence intensity.
2. Quantification
   • Flow cytometry can detect fetal cells at very low frequencies (e.g., 0.01% of maternal red blood cells).
   • Results are expressed as the percentage of fetal cells in maternal blood, similar to the KB test, enabling calculation of fetal blood volume loss.
3. Example application:
   • In a case of maternal trauma, where Kleihauer-Betke staining may yield ambiguous results due to technical staining errors or maternal hemoglobin variants, flow cytometry provides a more precise assessment of feto-maternal hemorrhage, guiding rh immune globulin dosing and fetal monitoring.

Advantages and limitations compared with the Kleihauer-Betke test

Advantages:

1. Higher sensitivity and specificity
   • Capable of detecting very small amounts of fetal red blood cells, reducing false negatives associated with low-volume fetal hemorrhage.
2. Objective quantification
   • Automated counting reduces observer variability that can occur during microscopic evaluation in the KB test.
3. Detection of hemoglobin variants
   • Less affected by maternal hemoglobinopathies or technical staining errors, which can cause false positive results in KB testing.

Limitations:

1. Cost and equipment
   • Flow cytometry requires specialized instruments and trained personnel, making it less accessible in resource-limited settings.
2. Sample processing complexity
   • Samples require careful preparation with fluorescent antibodies and often multiple washes, increasing turnaround time compared with the KB stain.
3. Interpretation challenges
   • False positives may still occur if maternal cells express HbF (e.g., in certain hemoglobinopathies or after transfusions).
   • Requires careful gating strategies to accurately separate fetal and maternal cells.
4. Clinical integration
   • While highly sensitive, flow cytometry results must be interpreted in the context of gestational age, clinical events (e.g., placental abruption, maternal trauma), and other laboratory findings.

Situations where confirmatory testing is recommended

While the Kleihauer-Betke Test is suitable for routine FMH detection, confirmatory testing with flow cytometry or other advanced methods is recommended in the following situations:

1. Equivocal KB results
   • When microscopic evaluation is unclear due to poor smear quality, technical staining artifacts, or suspected maternal hemoglobin variants.
2. Low-volume fetal hemorrhage
   • In cases where precise quantification is critical, such as Rh-negative mothers at risk of alloimmunization, or when fetal exposure is suspected but KB test fails to detect fetal cells.
3. High-risk obstetric events
   • Following placental abruption, cases of maternal trauma, or invasive procedures, where accurate fetal blood loss estimation guides transfusion and rh immune globulin therapy.
4. Research or epidemiological studies
   • Flow cytometry is often preferred in studies investigating fetal-maternal hemorrhage incidence or evaluating novel interventions in obstetrics.

Laboratory considerations in modern obstetric diagnostics

Implementing flow cytometry and other advanced fetal cell detection techniques in contemporary obstetric practice requires attention to laboratory standards and protocols:

1. Sample handling
   • Proper collection and timely processing are essential. Maternal blood should be anticoagulated, protected from hemolysis, and processed promptly to maintain fetal erythrocyte integrity.
2. Standardization and quality control
   • Laboratories must follow standardized protocols for antibody staining, instrument calibration, and analysis.
   • Controls using known fetal and maternal blood samples help validate results.
3. Reporting
   • Results should include the percentage of fetal cells, estimated fetal blood volume, and interpretation notes highlighting clinical significance.
   • Laboratories should indicate any limitations, such as potential interference from maternal hemoglobin variants or technical factors.
4. Integration with KB testing
   • In many centers, flow cytometry is reserved as a confirmatory or adjunct test to the Kleihauer-Betke Test, balancing cost, turnaround time, and clinical utility.
   • Combining both methods ensures accurate detection, particularly in high-risk obstetric cases, while maintaining efficiency in routine monitoring.

Nursing Responsibilities in Kleihauer-Betke Testing and Obstetric Care

Nurses play a critical role in ensuring the accuracy, reliability, and clinical utility of the Kleihauer-Betke Test. Their responsibilities span maternal blood sample collection, communication with laboratory and obstetric teams, patient monitoring, and education/documentation. Proper adherence to protocols ensures that results are clinically meaningful, fetal-maternal hemorrhage (FMH) is accurately assessed, and timely interventions—including rh immune globulin administration or transfusion—are initiated when necessary.

Proper collection and labeling of maternal blood samples

Accurate Kleihauer-Betke Test results begin with correct sample collection:

1. Sample type and volume
   • Collect maternal blood using standard venipuncture techniques.
   • Typically, 2–5 mL of maternal blood is sufficient for staining and microscopic analysis.
2. Anticoagulants and handling
   • Use EDTA-containing tubes to prevent coagulation and maintain fetal red blood cell integrity.
   • Avoid hemolysis by gently inverting tubes rather than shaking.
3. Labeling and documentation
   • Clearly label each sample with maternal identifiers (name, date of birth, medical record number) and date/time of collection.
   • Include the indication for testing (e.g., placental abruption, cases of maternal trauma, suspected feto-maternal hemorrhage).

Example:
A patient experiences minor abdominal trauma at 34 weeks gestation. The nurse collects a properly labeled maternal blood sample, noting “suspected FMH after maternal trauma,” ensuring the laboratory can prioritize and interpret the sample correctly.

4. Transport considerations
   • Samples should be transported to the clinical laboratory promptly to avoid cell degradation.
   • Maintain samples at room temperature; refrigeration may alter fetal red blood cell morphology and affect KB test accuracy.

Communication with laboratory teams and obstetrics providers

Effective communication ensures accurate testing and timely clinical decisions:

1. Pre-analytical communication
   • Inform the laboratory of the clinical scenario, including gestational age, placental complications, or trauma events.
   • Highlight whether the mother is rh-negative, which may influence KB test urgency and rh immune globulin dosing.
2. Ongoing updates
   • Provide laboratory teams with follow-up information if additional testing is required (e.g., repeat KB test after trauma or delivery).
3. Clinical collaboration
   • Discuss KB test results with obstetric providers, emphasizing percentage of fetal cells, estimated fetal blood loss, and implications for transfusion or rh immune globulin therapy.

Example:
In a patient with placental abruption, the nurse communicates a high percentage of fetal cells detected in the maternal blood sample to the obstetrician. This timely update allows immediate planning for fetal monitoring and potential neonatal transfusion.

Monitoring patients with suspected fetal hemorrhage

Nurses are responsible for both maternal and fetal surveillance:

1. Maternal monitoring
   • Observe for signs of hemodynamic instability: hypotension, tachycardia, pallor, or ongoing maternal hemorrhage.
   • Document vital signs and report significant changes promptly.
2. Fetal monitoring
   • Conduct continuous fetal heart rate monitoring in high-risk cases.
   • Watch for signs of fetal anemia, preterm labor, or fetal compromise secondary to feto-maternal hemorrhage.
3. Follow-up testing
   • In certain scenarios, repeat Kleihauer-Betke tests may be indicated to track progression of fetal blood cells in maternal circulation.
   • Coordinate with laboratory and obstetric teams for timing and sample handling.

Example:
A mother with minor trauma at 32 weeks gestation has a positive KB test showing 2% fetal cells. The nurse continues fetal monitoring, documenting heart rate patterns, and alerts the obstetrician if any abnormal variability or decelerations occur.

Patient education and documentation in obstetric care

Education and meticulous documentation ensure patient safety and informed clinical decision-making:

1. Patient education
   • Explain the purpose of the KB test: detecting fetal-maternal hemorrhage, estimating fetal blood loss, and guiding rh immune globulin therapy.
   • Clarify procedures, such as blood collection and possible repeat testing.
   • Discuss potential outcomes, including the need for fetal monitoring, maternal or neonatal transfusion, or anti-D administration in rh-negative mothers.
2. Counseling about implications
   • Address patient concerns about fetal outcomes, anemia, or preterm labor risks.
   • Emphasize that positive KB test results are actionable and guide interventions to protect both mother and fetus.
3. Documentation
   • Record the indication for testing, time and method of sample collection, and communication with laboratory/obstetric team.
   • Include patient education provided, any patient questions, and follow-up plans.
   • Document KB test results, including percentage of fetal cells and estimated fetal blood loss, along with clinical decisions made (e.g., rh immune globulin dosing, transfusion).

Example:
After collecting a maternal blood sample for a KB test, the nurse documents that the patient was educated about feto-maternal hemorrhage, potential need for rh immune globulin, and follow-up fetal monitoring. This ensures continuity of care and clear communication across the healthcare team.

Limitations, Pitfalls, and Sources of Error in the Kleihauer-Betke Test

While the Kleihauer-Betke Test is a valuable tool for detecting feto-maternal hemorrhage (FMH), it is not without limitations. Understanding potential sources of error and strategies to improve reliability is essential to ensure accurate fetal blood cell quantification and to guide clinical decision-making in obstetrics.

False positive results caused by maternal hemoglobin variants

One significant source of error in the KB test is the presence of maternal hemoglobin variants, which can mimic fetal hemoglobin (HbF):

1. Common variants causing false positives
   • Hereditary persistence of fetal hemoglobin (HPFH): some adults retain high levels of HbF, which stains similarly to fetal red blood cells.
   • Sickle cell trait or disease: altered adult red blood cells may retain staining characteristics resembling fetal erythrocytes.
   • Thalassemia: in certain forms, maternal red blood cells may resist acid elution, producing false positive KB test results.
2. Clinical implications
   • Overestimation of percentage of fetal cells may lead to unnecessary interventions, such as additional rh immune globulin doses or unwarranted fetal monitoring.

Example:
An rh-negative mother with HPFH shows a positive KB test with 4% “fetal cells.” In reality, only 1–2% are actual fetal red blood cells. Without awareness of maternal hemoglobin variants, this could lead to excessive anti-D administration.

Technical staining errors affecting fetal cell identification

The Kleihauer-Betke stain relies on the acid elution property of fetal hemoglobin, and technical errors can compromise accuracy:

1. Over- or under-staining
   • Over-staining may make adult red blood cells appear faintly pink, confusing them with fetal cells.
   • Under-staining can obscure fetal red blood cells, resulting in false negative results.
2. Inconsistent slide preparation
   • Uneven smearing of maternal blood can produce areas with overlapping cells, making accurate counting difficult.
   • Poor drying before staining can lead to precipitation artifacts that resemble fetal erythrocytes.
3. Observer variability
   • Manual counting under the microscope is subjective; differences in experience can affect number of fetal cells recorded.

Example:
In a busy clinical laboratory, a poorly prepared smear may show clustered fetal cells, leading to a KB test reading of 5% when actual fetal blood is closer to 2%. Such discrepancies impact decisions on rh immune globulin dosing.

Laboratory challenges in accurately quantifying fetal cells

Beyond staining, several laboratory factors influence the reliability of fetal cell quantification:

1. Maternal blood contamination
   • Hemolysis or clotting during sample collection can reduce fetal cell recovery, causing underestimation of fetal-maternal hemorrhage.
2. Timing of sample collection
   • Fetal red blood cells enter maternal circulation in varying quantities depending on the clinical event (e.g., placental abruption, trauma).
   • Early or delayed sampling may not accurately reflect peak fetal hemorrhage, affecting calculated percentage of fetal cells.
3. Laboratory reporting standards
   • Lack of standardized counting methods (e.g., number of fields counted, total cells analyzed) can lead to inconsistent KB test results across facilities.

Strategies to improve test reliability in obstetrics

Several approaches can enhance the accuracy and clinical usefulness of the Kleihauer-Betke Test:

1. Standardized protocols
   • Use uniform slide preparation, staining times, and acid elution conditions to minimize variability.
   • Laboratories should adopt clear guidelines for field selection and cell counting.
2. Quality control and validation
   • Include known fetal blood controls in each batch to verify staining quality.
   • Periodic cross-checking by multiple observers reduces observer bias.
3. Supplementary testing
   • Use flow cytometry or advanced elution techniques in cases where maternal hemoglobin variants are suspected or KB test results are borderline.
   • Confirmatory testing is especially important in high-risk obstetric scenarios, such as placental abruption or maternal trauma.
4. Training and competency
   • Ensure laboratory personnel are skilled in microscopic identification of fetal cells and aware of common artifacts.
   • Periodic competency assessments maintain reliability and reduce technical staining errors.

Example:
In a tertiary obstetric center, implementing a protocol combining KB testing with flow cytometry confirmation for all cases of suspected feto-maternal hemorrhage reduced false positives due to maternal hemoglobin variants by over 80%, allowing more accurate rh immune globulin dosing.

Clinical Case Studies and Evidence from the Journal of Obstetrics

The Kleihauer-Betke Test has been extensively studied in real-world obstetric practice, providing invaluable insights into the detection and management of fetal-maternal hemorrhage (FMH). Evidence from the Journal of Obstetrics and other peer-reviewed sources demonstrates how Kleihauer-Betke testing informs clinical decisions in cases of placental abruption, maternal trauma, and other high-risk situations. Analysis of these cases emphasizes the importance of accurate fetal cell quantification, timely rh immune globulin administration, and proactive fetal monitoring.

Case examples of fetal hemorrhage following placental abruption

Placental abruption is a major cause of fetal hemorrhage in obstetrics, and the Kleihauer-Betke Test is critical for quantifying fetal red blood cells in maternal circulation.

Example 1:

• A 32-week gestation patient presented with vaginal bleeding and abdominal pain.
• Ultrasound revealed partial placental abruption, and maternal blood was collected for KB testing.
• The positive KB test indicated 6% fetal cells, translating to an estimated 300 mL of fetal blood lost into maternal circulation.
• Immediate fetal monitoring was initiated, and an urgent rh immune globulin dose was calculated for the rh-negative mother.
• Neonatal hemoglobin levels were low, necessitating blood transfusion post-delivery.

Lessons from this case:

• High-volume fetal hemorrhage can occur rapidly during placental abruption.
• The Kleihauer-Betke test enables precise estimation of fetal blood loss, guiding transfusion and immune prophylaxis.

Example 2:

• A patient with a history of mild placental abruption in a previous pregnancy underwent routine KB testing after minor vaginal bleeding at 28 weeks.
• KB results revealed 2% fetal red blood cells, confirming minimal FMH.
• The patient was monitored without immediate intervention, highlighting how the KB test differentiates between minor and significant hemorrhage.

Cases of maternal trauma requiring Kleihauer-Betke testing

Maternal trauma, including motor vehicle accidents or falls, poses a risk of feto-maternal hemorrhage. The KB test is a key diagnostic tool in these scenarios.

Example 1:

• A 29-year-old rh-negative mother experienced blunt abdominal trauma at 30 weeks.
• KB test showed 3% fetal cells, corresponding to approximately 150 mL of fetal blood in maternal circulation.
• Based on these results, clinicians administered anti-D (rh immune globulin) and initiated fetal monitoring, preventing potential hemolytic disease of the fetus.

Example 2:

• In a minor fall at 34 weeks, a patient’s KB test revealed only trace amounts of fetal blood cells, under 1%.
• No immediate interventions were required, but repeat testing was scheduled to ensure fetal safety, illustrating the KB test’s role in risk stratification.

Lessons from these cases:

• Kleihauer-Betke testing provides actionable data even when trauma appears minor.
• Accurate fetal cell quantification informs decisions on rh immune globulin dosing and potential transfusion needs.

Lessons from published obstetrics research on fetal-maternal hemorrhage management

Evidence from the Journal of Obstetrics and related studies reinforces several key principles in managing feto-maternal hemorrhage:

1. Quantitative assessment is essential
   • Studies demonstrate that estimating the percentage of fetal cells via KB testing allows precise calculation of fetal blood volume loss.
   • This estimation directly influences rh immune globulin dosing in rh-negative mothers and helps determine the need for fetal or neonatal transfusion.
2. Early detection improves fetal outcomes
   • Research shows that timely KB testing in placental abruption or maternal trauma reduces the incidence of neonatal anemia and prevents hemolytic disease of the fetus.
3. Integration with other diagnostic tools enhances accuracy
   • Some studies recommend confirmatory testing with flow cytometry or advanced elution techniques in cases with borderline or ambiguous KB results, improving reliability and clinical decision-making.
4. Clinical protocols benefit from case-based evidence
   • Evidence-based algorithms derived from journal reports emphasize:
     • Immediate maternal blood collection after trauma or placental complications
     • Prompt calculation of fetal blood loss using KB results
     • Administration of rh immune globulin and planning for fetal monitoring or neonatal transfusion as indicated

Example from research:
A multicenter study reported in the Journal of Obstetrics found that in 112 cases of feto-maternal hemorrhage after trauma, KB testing detected fetal red blood cells in 95% of instances. When KB results were combined with clinical monitoring, neonatal anemia was minimized, and alloimmunization in rh-negative mothers was prevented.

Conclusion

The Kleihauer-Betke Test remains a cornerstone in obstetric care for detecting feto-maternal hemorrhage (FMH) and guiding critical interventions. Through the identification and quantification of fetal red blood cells in maternal circulation, the KB test provides clinicians with actionable data that influence rh immune globulin administration, maternal and neonatal transfusion decisions, and ongoing fetal monitoring. Its utility extends across multiple high-risk scenarios, including placental abruption, maternal trauma, and other obstetric complications where fetal hemorrhage may compromise fetal outcomes.

While the Kleihauer-Betke stain has limitations—including false positives from maternal hemoglobin variants, technical staining errors, and laboratory variability—strategies such as standardized protocols, quality control measures, and confirmatory testing with flow cytometry enhance reliability. Real-world evidence from case studies and research in the Journal of Obstetrics emphasizes that accurate fetal cell quantification improves maternal and fetal safety, reduces the risk of alloimmunization, and prevents neonatal anemia.

In contemporary obstetric practice, the KB test should be understood not merely as a laboratory assay but as an integral component of comprehensive maternal-fetal care. Nurses, clinicians, and laboratory personnel must collaborate to ensure proper sample collection, precise staining and counting, timely communication, and thoughtful clinical interpretation. By adhering to best practices, healthcare teams can leverage the Kleihauer-Betke Test to protect both mother and fetus, minimize complications, and optimize fetal outcomes across diverse clinical scenarios.

Ultimately, mastery of the Kleihauer-Betke Test, combined with awareness of its limitations and integration with advanced techniques like flow cytometry, equips obstetric teams to respond effectively to fetal-maternal hemorrhage, ensuring evidence-based, high-quality care for both maternal and fetal health.

Frequently Asked Questions

What does the Kleihauer-Betke test indicate about pregnancy?

The Kleihauer-Betke test indicates the presence and extent of fetal-maternal hemorrhage (FMH) by detecting fetal red blood cells in maternal blood. It helps assess whether the fetus has lost blood into the maternal circulation, guiding interventions such as rh immune globulin administration, maternal or neonatal transfusion, and monitoring for fetal anemia or complications from placental hemorrhage.

What is another name for the Kleihauer test?

Another name for the test is the Kleihauer-Betke stain or Kleihauer–Betke test, referencing the acid elution technique used to differentiate fetal hemoglobin-containing red blood cells from adult red blood cells.

What is the basic principle of the Kleihauer-Betke test?

The basic principle is acid elution: fetal hemoglobin (HbF) resists acid exposure while adult hemoglobin (HbA) is eluted. When a maternal blood smear is treated with an acid solution and stained, fetal red blood cells appear bright pink/red, while maternal red blood cells appear pale. This allows quantification of fetal cells to estimate feto-maternal hemorrhage.

Can a Kleihauer test detect all fetal bleeds?

No, the KB test may not detect all fetal bleeds. Small or very recent fetal-maternal hemorrhages may be underestimated or missed. Additionally, maternal hemoglobin variants, technical errors, or improper sample handling can produce false negatives. In some cases, flow cytometry or repeated testing is recommended for more sensitive detection.
